SIM card installation

  Last updated:

  Unfortunately, the product documented here is currently only available in English.

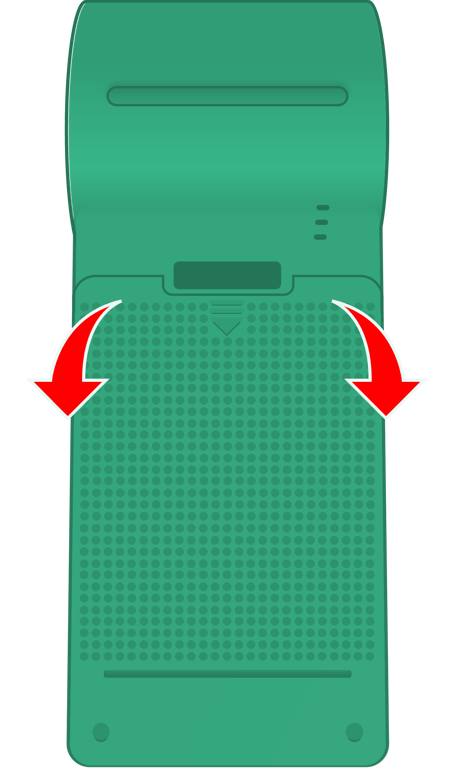

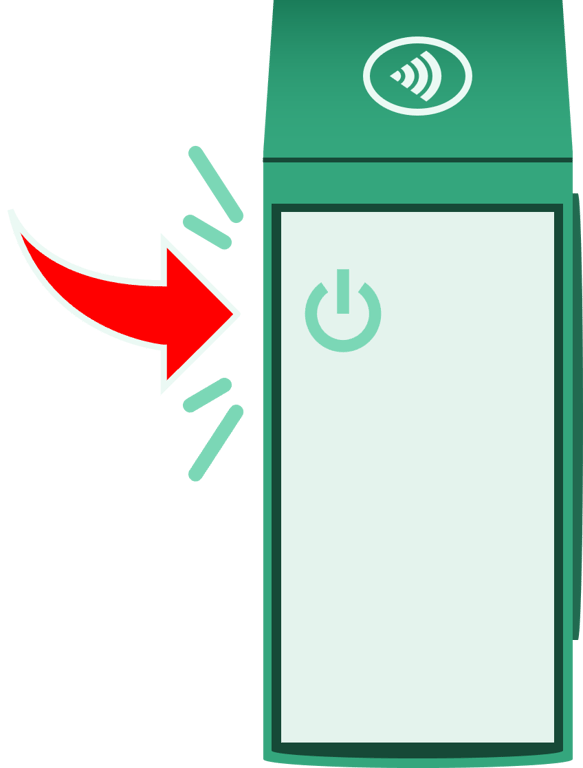

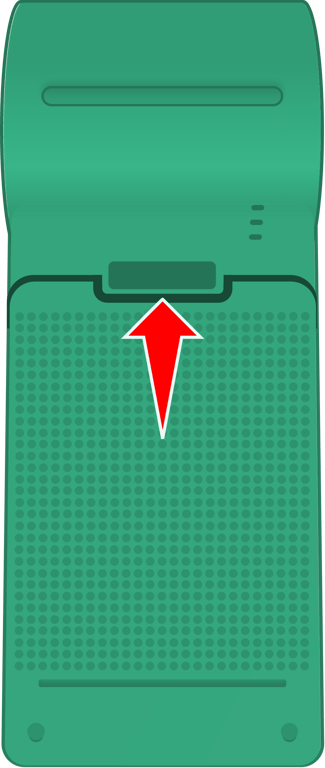

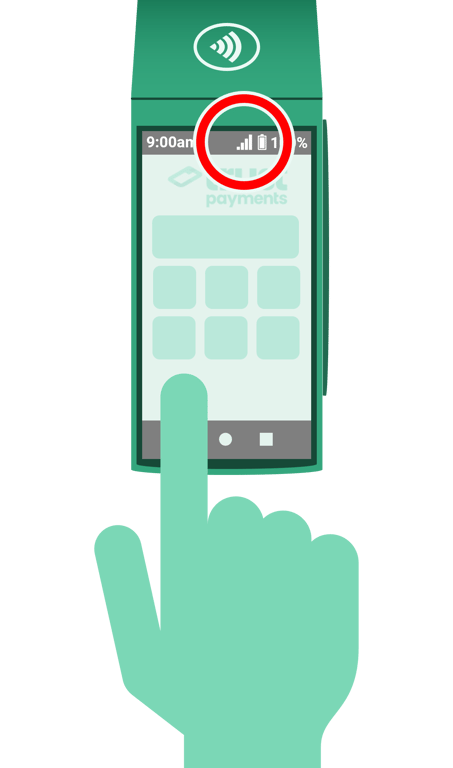

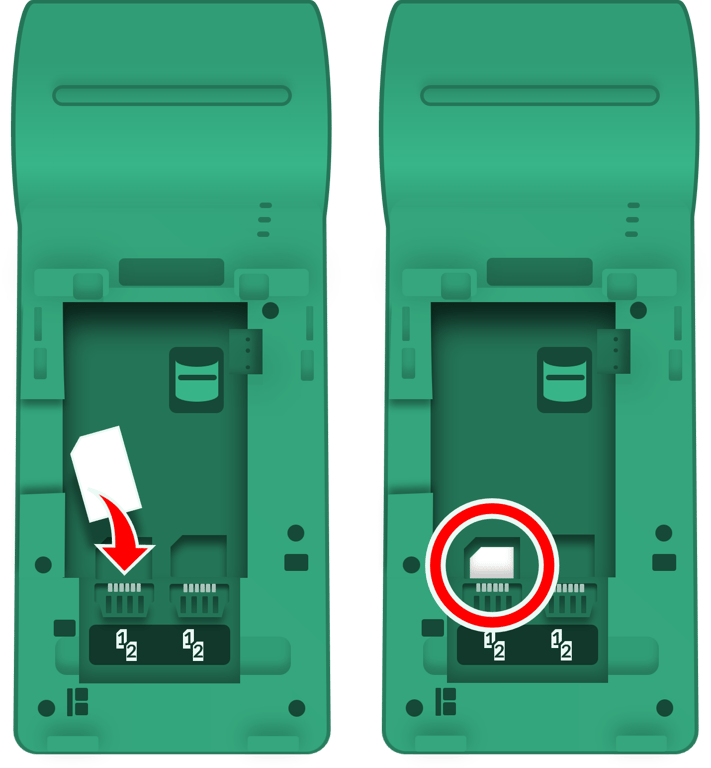

Installing SIM card(s)

saturn1000-simcard1.svg

saturn1000-simcard2.svg

saturn1000-simcard3.svg

saturn1000-simcard4.svg

saturn1000-simcard5.svg

saturn1000-simcard6.svg

saturn1000-simcard7.svg

saturn1000-simcard8.svg



SIM settings

  1. From the main screen, tap "Settings".
  2. Enter the "Manager Passcode" and tap
  3. Tap "System Settings" then "Network Settings".
  4. From the Network & internet page displayed, tap "SIMs".
  5. From here you can enable/disable data connections and roaming on each SIM.
  6. You can tap the   icon in the bottom left to return to previous pages.
Additional configuration for Mobius SIMs
  1. Follow the steps above to reach the Network & internet page.
  2. Tap "Mobile Network", then "Advanced".
  3. Scroll down and tap "Access Point Names".
  4. Tap + to add a new access point.
  5. Enter the following details into the form shown:

    Tap    at the top of the page to return to the APNs page.

  6. From the APNs page, ensure "Mobius" is selected.
  7. Tap    at the top of the page to return to the Network & internet page. If the SIM has been configured successfully, your mobile network will now be displayed.
