Castles VEGA 3000 Pin Pad

  Last updated:

VEGA 3000C can be integrated with a VEGA 3000P which then serves as a PIN Pad.

In this configuration VEGA 3000C is used as the merchant device (entering amount, controlling the payment and printing) and VEGA 3000P as the cardholder-facing device (showing amount to pay, reading card and PIN).

VEGA 3000P can be used as a merchant/cardholder terminal when integrated with an EPOS. In this configuration the EPOS controls the terminal, provides the printer for receipt printing and allows internet connection.

PIN Pad diagram: Magnetic stripe, chip and contactless card readers are all highlighted, as well as connection to terminal.



Image of the PIN Pad accessory. Labelled are the large touchscreen, backlit keys, fitted privacy shield and card reader.



  Benefits

  • Large touch screen with built-in NFC reader
  • Large backlit keys
  • Secure Linux platform
  • New ergonomic design



Features and benefits

  • Unprecedented security and certifications
    PCI PTS 4.x
    EMV contact/contactless Lv1
    EMV contact Lv2
    Contactless scheme certifications (Paypass, Paywave, ExpressPay, D-PAS, J-Speedy, QPBOC...)
  • Incredibly adaptable
    Optional touch availability
    Flexible to integrate business applications
  • Exceptional performance
    High security processor
    Operable under extreme conditions
    Linux open architecture OS



Specifications

Processor 32-bit Secure Microprocessor running powerful Linux based OS
Memory 128 MB/64MB (Up to 256MB/128MB)
Micro-SD socket Yes
Display 3.5” Color TFT LCD | 320 x 480 Pixels
Touch Screen Yes
Card reader Magnetic Stripe: ISO 7810, 7811, 7813 Triple Track, Bi-Directional
Contact Card - User Card: ISO 7816 ID-1 1.8V/3V/5V T=0, T=1
Contact Card - SAM Card: 2 (Up to 4)
Contactless (Optional): ISO 14443 Type A, B | ISO 18092 NFC
Mifare & Sony FeliCa Working Frequency 13.56 MHz
Communications USB
Indicators LED - Contactless: No
Audio Buzzer: Yes
Keypad Standard Keys: 15
Function Keys: No
Software SDK | KMS | TMS | GDB | CTOS library | ISO 8583 library | Crypto library
Crypto TRNG | DES | T’DES | AES | RSA |MK/SK | DUKPT | T’DES DUKPT
Power Supply DC 5V/1A
Dimensions  (L x W x H) 145mm x 77mm x 56.8mm
Weight Pin Pad: 260g
Operating temperature 0°C to 50°C
Storage temperature -20°C to 70°C
Operating humidity 5% to 90% non-condensing
Storage humidity 5% to 90% non-condensing
Certification PCI PTS 4.x | EMV L1/L2 | payWave | PayPass | ExpressPay | D-PAS | Interac Flash | J-Speedy | FeliCa | UnionPay UICS | TQM | PBOC L1/L2



Connecting the pin pad

Connect PIN Pad to VEGA 3000C through second USB slot (USB 2) as shown in picture below.

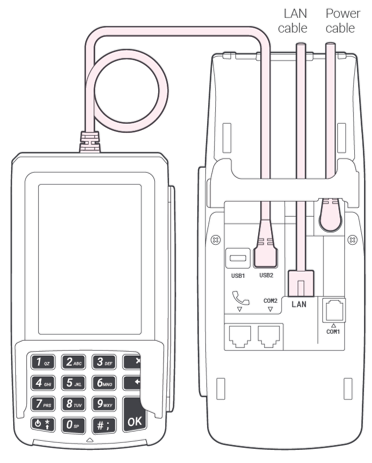

Diagram showing the PIN Pad connected to the underside of the terminal via cable. LAN and power connections are also shown.
